普通型MTZ-100無限遠光學系統，提供了卓越的光學性能，廣泛應用于機械.礦產工業進行金屬、巖礦等的組織鑒別，以及半導體、電子工業進行晶體、集成電路的檢驗和科學研究。該顯微鏡同時配備透射照明、成像和觀察系統，可用于生物、病理等研究

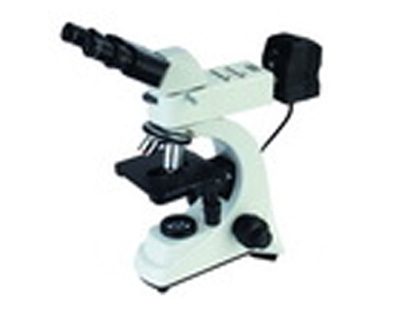

普通型MTZ-100金相顯微鏡
正置式金相顯微鏡
Up-right Metallurgical Microscope
無限遠光學系統，提供了卓越的光學性能，廣泛應用于機械.礦產工業進行金屬、巖礦等的組織鑒別，以及半導體、電子
工業進行晶體、集成電路的檢驗和科學研究。該顯微鏡同時配備透射照明、成像和觀察系統，可用于生物、病理等研究。
Metallurgical microscope is widely used for metallurgical, mineral identification and crystal, integrated circuit
examination and research. It is available to be supplied with transmitted illumination, imaging and viewing system and
accessories as a biological microscope for medical institute use.
配制表(configuration)
組件（Parts） | 規格(standard) | HJ1 | |
觀察頭Viewing Head | 雙目觀察頭Binocular Head | ● | |
目鏡Eyepiece | WF10X/18 | ● | |
WF10X/18帶0.1mm刻尺及十字分劃 WF10X/18 W/0.1mm micrometer and cross hair | ○ | ||
WF8X/18 | ○ | ||
WF12.5X/15 | ○ | ||
物鏡Objective | 無窮遠平場消色差物鏡 Infinitive plan achromatic objectives | 4X/0.1/∞/-WD25.4mm | ● |
10X/0.25/∞/-WD11.0mm | ● | ||
20X/0.40/∞/-WD6.0mm | ○ | ||
40X/0.60/∞/-WD3.7mm | ● | ||
80X/0.90/∞/-WD0.2mm | ○ | ||
轉換器Nosepiece | 四孔轉換器Quadruple Nosepiece | ● | |
載物臺Stage | 雙層活動平臺，尺寸150×140mm，移動范圍75×50mm Double layer mechanical stage, Size 150×140mm, Movement 75×50mm | ● | |
焦距調節Focusing | 同軸粗微調焦機構Coaxial fine and coarse adjustment | ● | |
照明 Illumination | 柯拉照明，垂直照明系統帶孔徑可變光欄和視場可變光欄；反射光照明，6V20W鹵素?zé)簦炼瓤烧{(diào) Kohler Illumination, Epi-illuminator with iris aperture diaphragm and iris field diaphragm. 220V or 110V/6V20W Halogen Lamp, Brightness Adjustable | ● | |
濾色片 Filters | 藍色、綠色、黃色 、磨砂玻璃片 Blue, Green, Yellow ，Ground Glass | ● | |
偏光裝置Polarization Attachment |
| ○ | |
